Audi 12.3" Touchscreen with Wireless CarPlay — A4 / A5 / S5 / Q5 B8 (non-navigation)

12.3-INCH TOUCHSCREEN WITH WIRELESS APPLE CARPLAY AND ANDROID AUTO FOR 2009 - 2016 AUDI A4, A5, S5 AND Q5 WITHOUT FACTORY NAVIGATION. REPLACES THE FACTORY SCREEN.

FITMENT — LEFT-HAND DRIVE CARS WITH THE LOW-CONFIGURATION (NON-NAVIGATION) RADIO

One listing for the models below. A4 / A5 and Q5 kits use different parts, so we match the kit to your car by VIN.

• Audi A4 B8 / B8.5 (2009-2016)
• Audi A5 / S5 (2009-2016)
• Audi Q5 8R (2009-2016)

FEATURES

• 12.3-inch touchscreen, 1920 × 720, Linux system
• Apple CarPlay — wireless or wired connection
• Android Auto — wireless or wired connection
• AirPlay screen mirroring for iPhone
• Android screen mirroring
• Bluetooth hands-free calls and Bluetooth music
• USB media player
• Original car menu shown on the new screen
• Backup camera input (RCA) and front camera view
• Brightness, contrast, saturation and backlight settings
• Separate volume for media, calls, voice and navigation; EQ settings

INSTALLATION NOTES

• The factory screen is removed and the 12.3-inch display mounts in its place
• The factory screen (LVDS) cable plugs into the supplied video adapter box
• The power harness plugs in between the factory radio and its power connector; the factory radio stays in the car
• The climate control panel connector is routed through the supplied adapter harness
• The factory hazard light switch is replaced with the supplied switch
• The harness has a 12V output for a camera and an RCA video input; a camera is not included

CHECK YOUR SYSTEM BEFORE ORDERING

• This kit is for the low-configuration radio without factory navigation. Cars with MMI 3G / 3G+ navigation need a different kit
• 2009-2016 B8 / B8.5 platform only
• Left-hand drive cars only
• Enter your VIN on this page before ordering, so we can match the kit to your car

This item ships directly from the manufacturer in about 7–14 days. The bracket and harness differ by model, so enter your VIN in the box on this page before you add the kit to the cart — it goes with your order, and we match the kit to your car before it ships. Questions before you buy? Email [email protected]

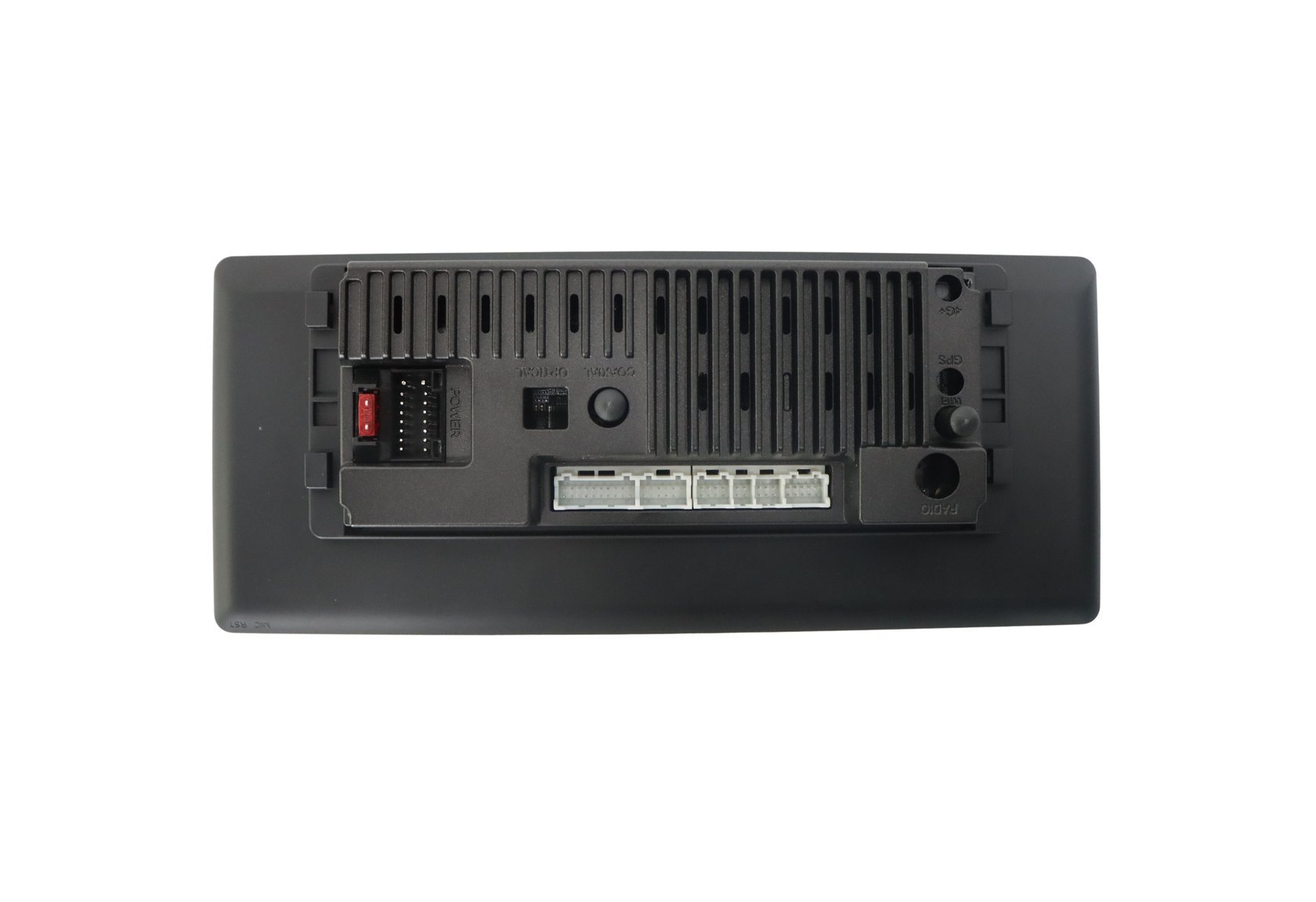

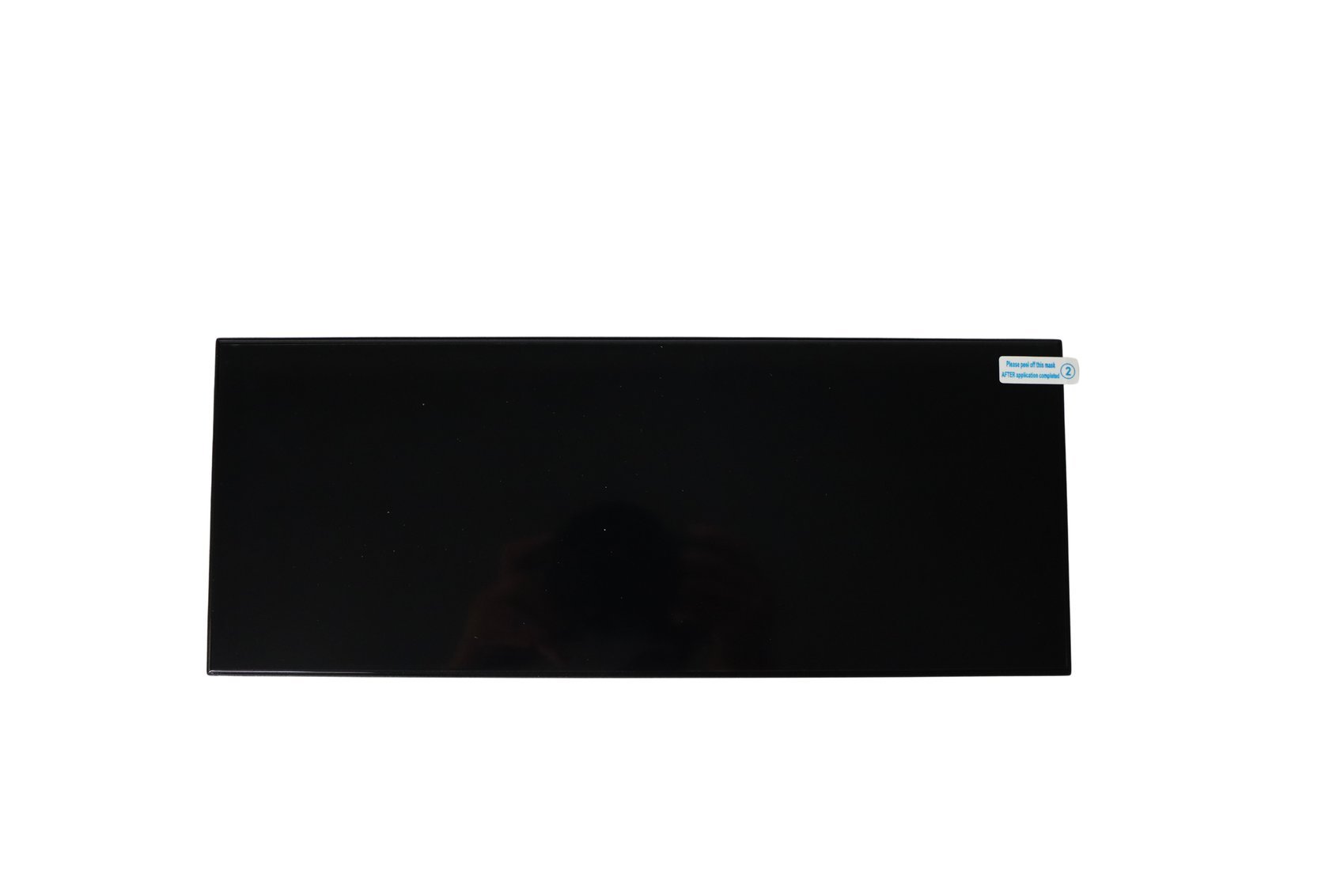

• 12.3-inch touchscreen display (1920 × 720)
• Video adapter box for the factory screen (LVDS) cable
• Power harness that plugs in between the factory radio and its power connector
• Climate control panel adapter harness

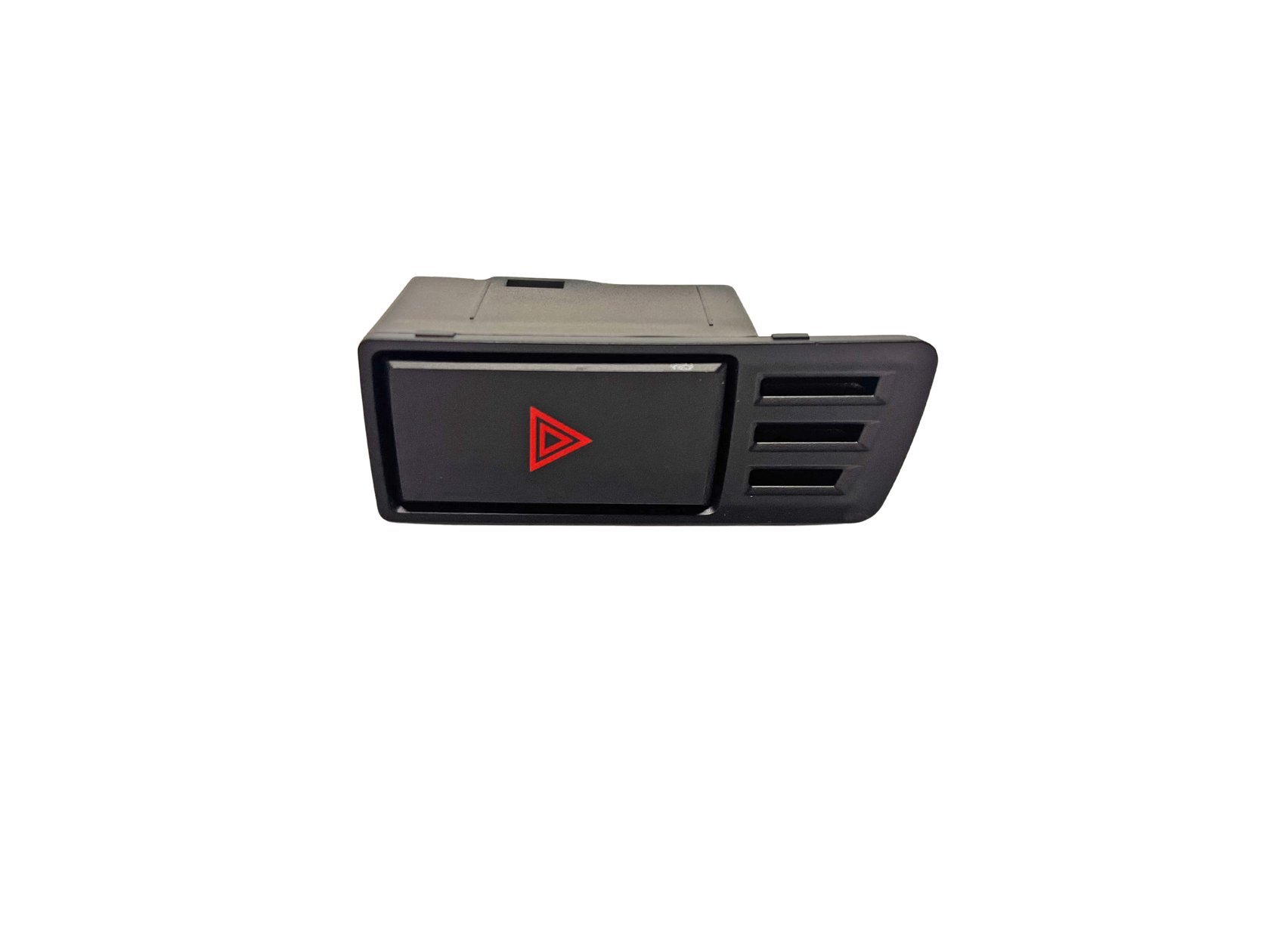

• Replacement hazard light switch with adapter cable

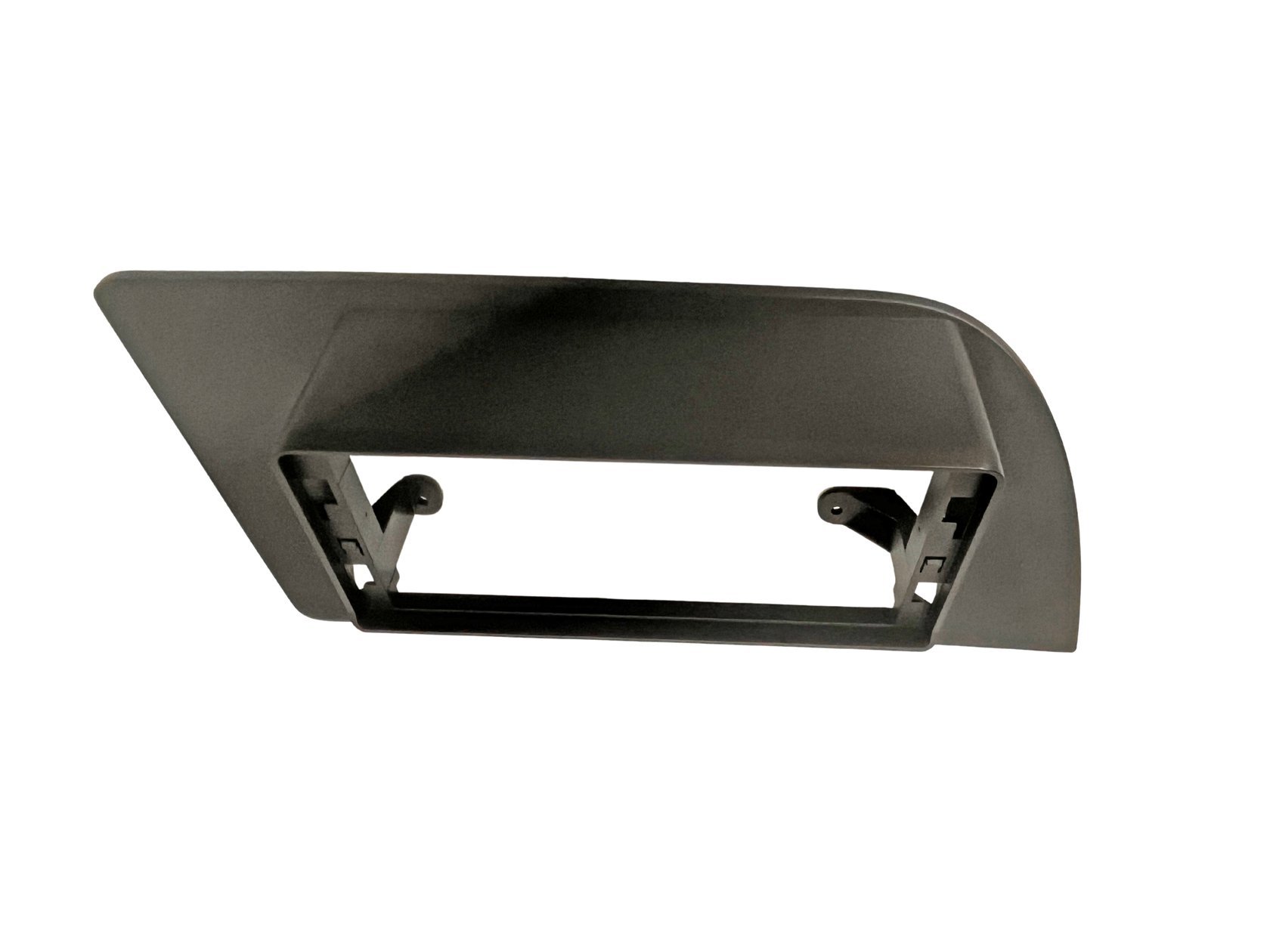

• Mounting bracket (A4 / A5 / S5)
• 2 x USB cables
• RCA video input cable for a backup camera
• Microphone
• Backup camera is not included — add one below

One kit covers the models in the description. The bracket and harness differ by model, so enter your VIN on this page before you add it to the cart: the VIN goes with your order and we match the kit to your car before it ships.

Ask before you buy

1. 1
   Check your system. The description lists the head unit and the models this screen fits.
2. 2
   Enter your VIN. Use the VIN box on this page before you add the kit to the cart. It goes with your order, and we match the bracket and harness to your car.
3. 3
   Order. The kit ships from the manufacturer in about 7–14 days. US shipping is free.
4. 4
   Install it. The factory screen comes out and the new display mounts in its place; the install notes in the description list each step. Any car audio shop can fit it.
