BMW 12.3" Touchscreen with Wireless CarPlay — NBT iDrive

12.3-INCH TOUCHSCREEN WITH WIRELESS APPLE CARPLAY AND ANDROID AUTO FOR BMW WITH NBT IDRIVE. REPLACES THE FACTORY SCREEN.

FITMENT — LEFT-HAND DRIVE CARS WITH THE FACTORY NBT IDRIVE SYSTEM

One listing for all the models below. Each model uses its own bracket and harness, so we match the kit to your car by VIN.

• BMW 2 Series F23 Convertible (2013-2017)
• BMW 3 Series F30, F31, F34, F35 (2013-2017)
• BMW 4 Series F32, F33, F36 (2013-2017)
• BMW 5 Series F10, F11 (2013-2016)
• BMW 5 Series GT F07 (2013-2018)
• BMW 6 Series F06, F12 (2013-2017)
• BMW 7 Series F01, F02 (2013-2015)
• BMW X1 F48 (2016-2017)
• BMW X3 F25 and X4 F26 (2014-2016)
• BMW X5 F15 (2014-2017)

FEATURES

• 12.3-inch touchscreen display, Linux system
• Apple CarPlay — wireless or wired connection
• Android Auto — wireless or wired connection
• AirPlay and Android Cast — wireless or wired connection
• Bluetooth phone calls and Bluetooth music
• Option to keep using the factory car Bluetooth
• USB music and video player
• Factory car menu shown on the new screen
• Split-screen or full-screen display of the factory system
• Rear camera input (RCA) with 12V camera power lead
• Front camera view, opened from the home screen
• Screen brightness, contrast, saturation and backlight settings
• Separate volume levels for media, calls, voice and navigation; microphone gain; EQ
• Wi-Fi used only to connect the phone — no internet access
• Software updates over USB

INSTALLATION NOTES

• The factory screen comes out; the new display mounts in its place with the supplied bracket
• Unplug the factory screen (LVDS) cable and connect it to the video box
• Unplug the power connector from the NBT head unit and fit the supplied power harness between the car and the head unit
• Move the fibre-optic plug from the original connector to the new connector on the supplied harness
• The factory NBT head unit stays in the car
• After install, set the factory screen resolution in the settings menu to match your original screen size (6.5" or 8.8" / 10.25")

CHECK YOUR SYSTEM BEFORE ORDERING

• Your car must have the NBT iDrive system. CIC and NBT EVO cars need a different kit
• This kit is for left-hand drive cars
• Each BMW model uses its own bracket and harness — enter your VIN on this page so we send the right one

This item ships directly from the manufacturer in about 7–14 days. The bracket and harness differ by model, so enter your VIN in the box on this page before you add the kit to the cart — it goes with your order, and we match the kit to your car before it ships. Questions before you buy? Email [email protected]

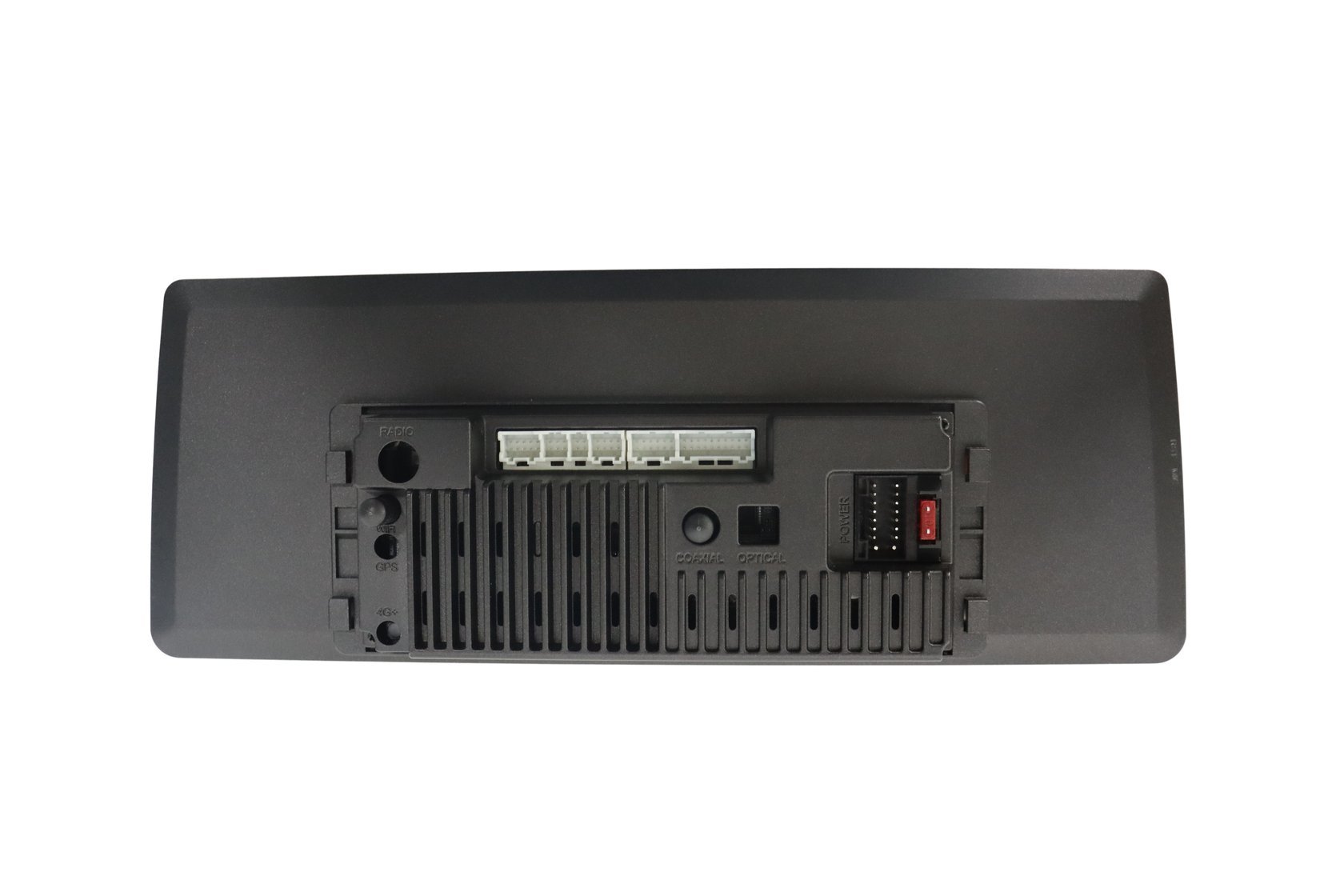

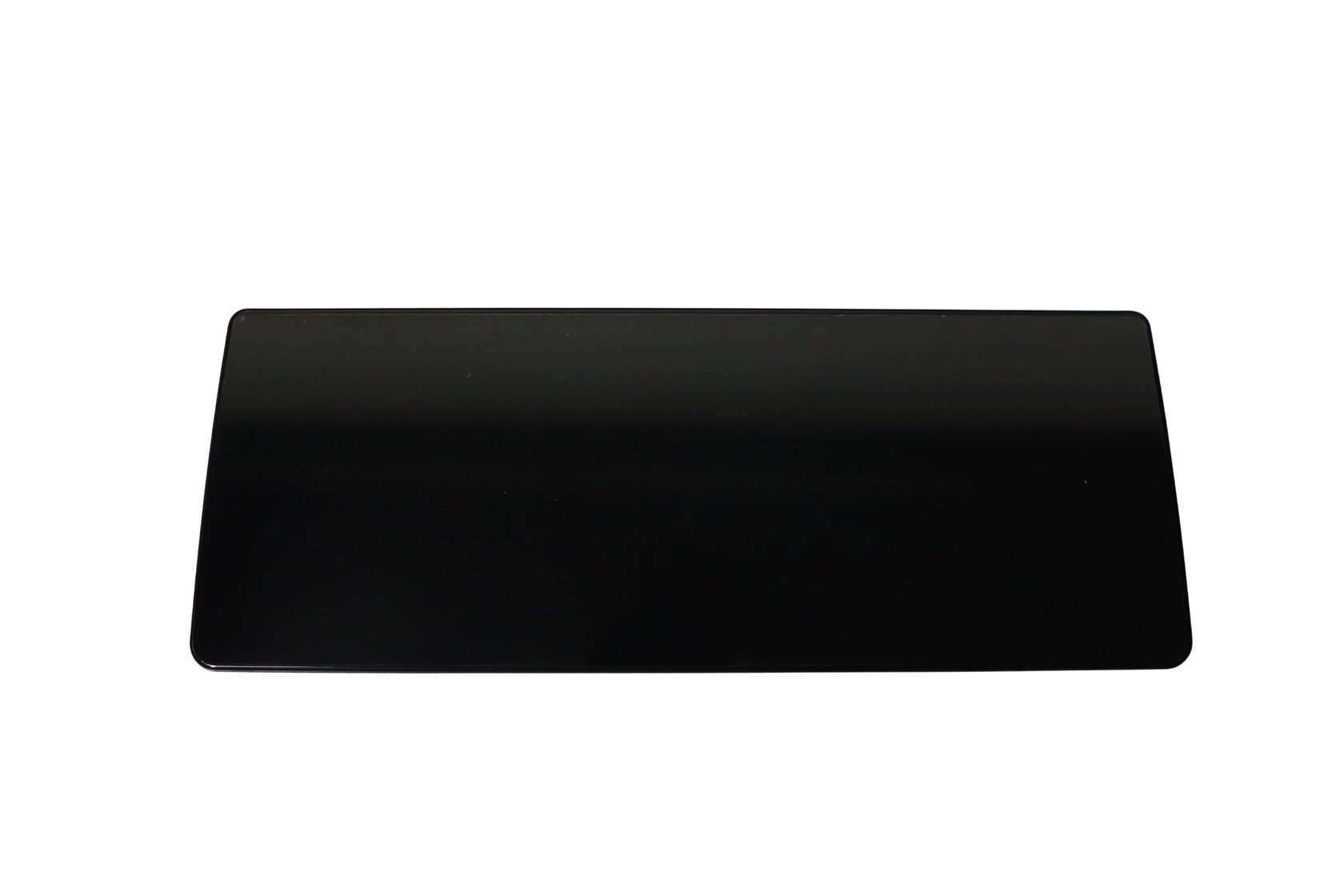

• 12.3-inch touchscreen display

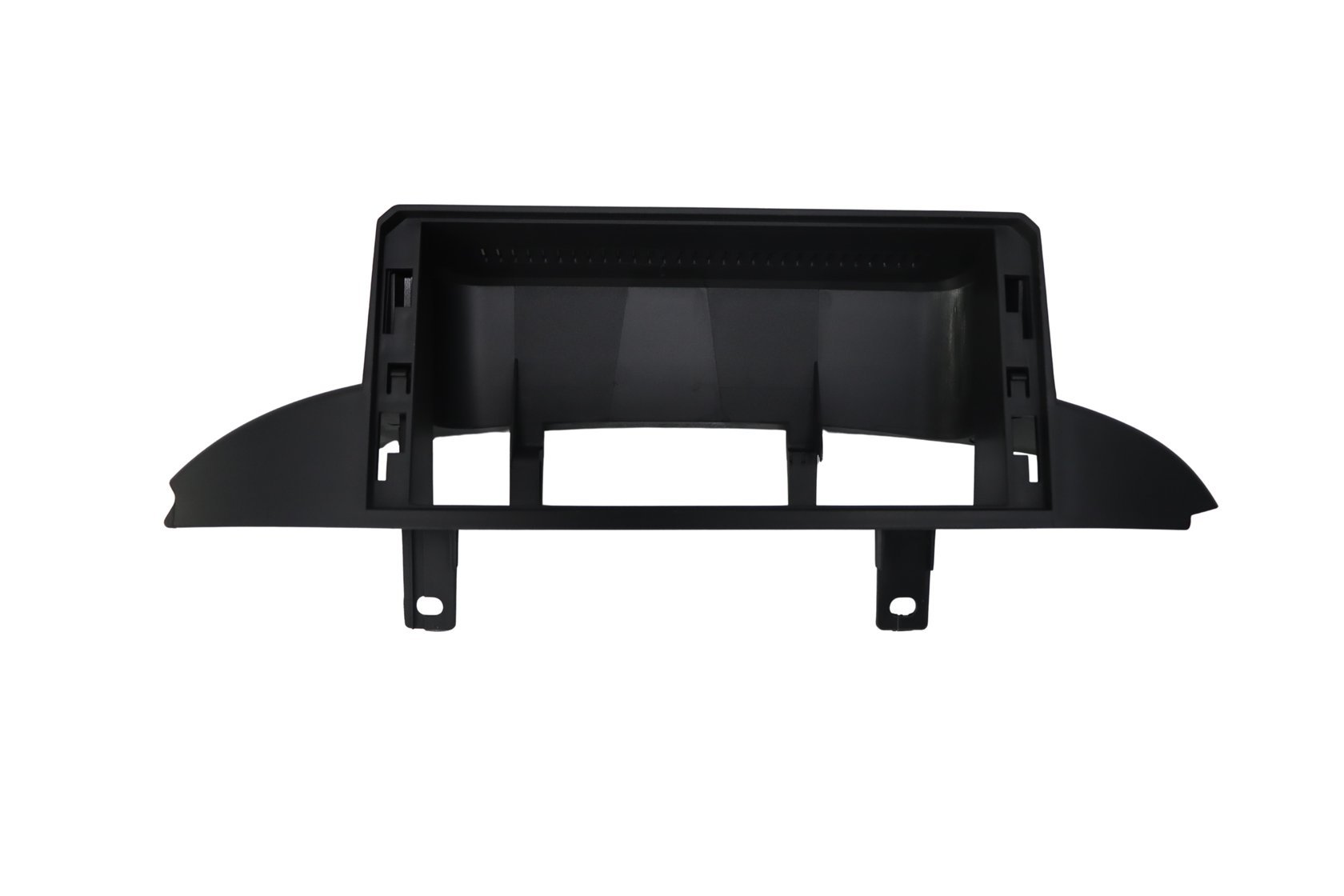

• Mounting bracket for your model

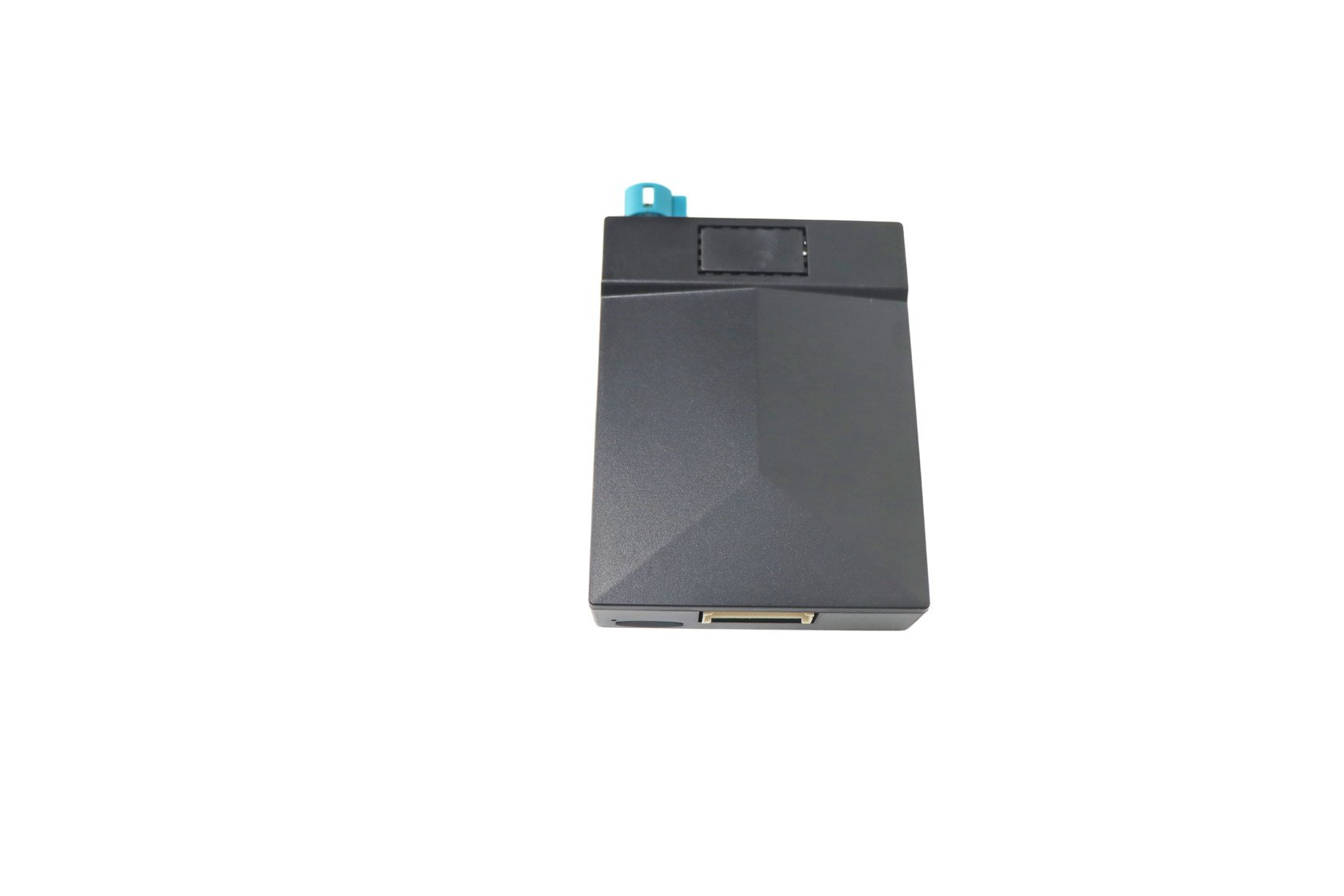

• Video box that connects to the factory screen (LVDS) cable
• Power harness that goes between the NBT head unit and its connector

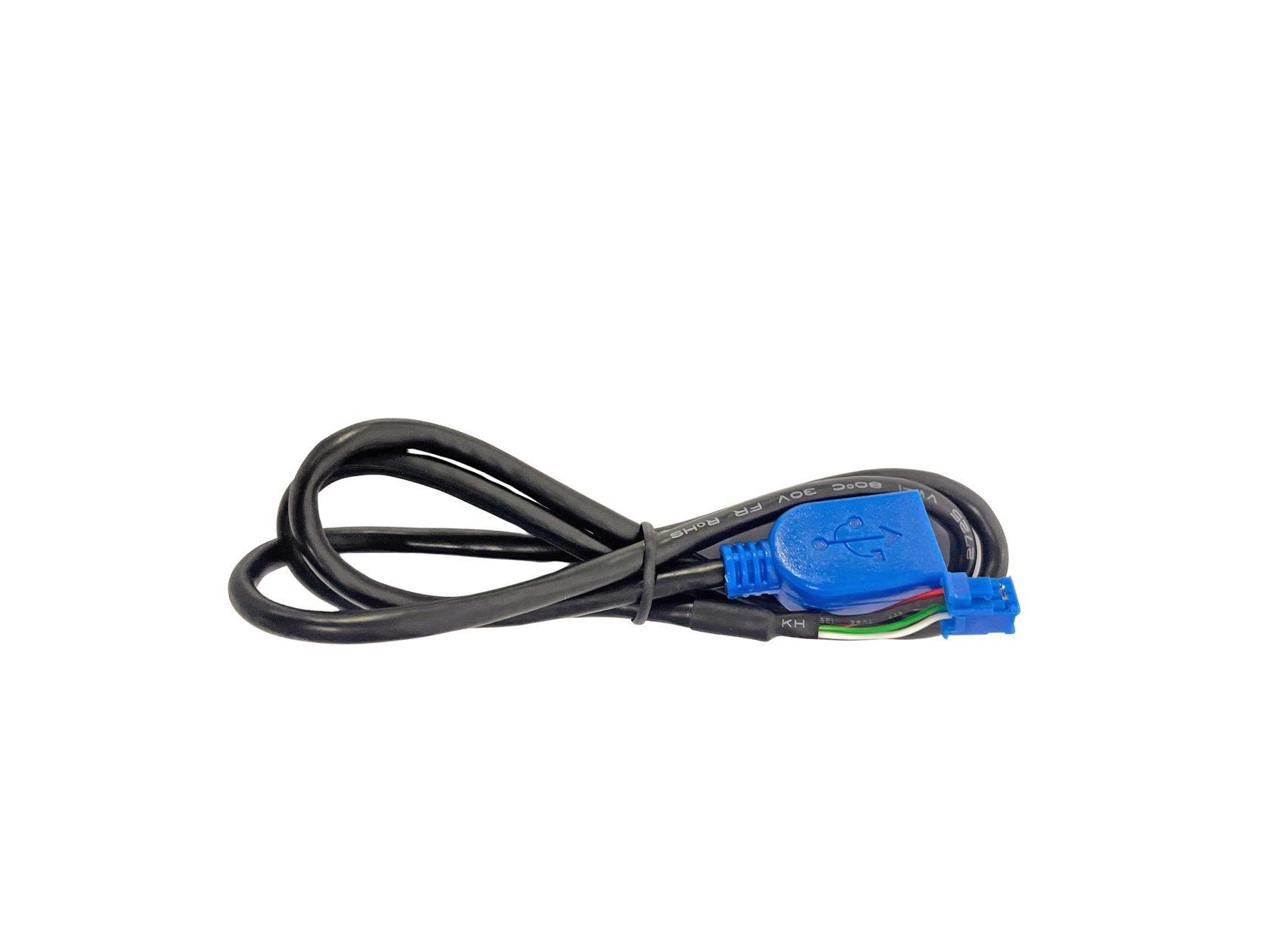

• 2 x USB cables (phone, USB drive and software updates)
• RCA camera input cable
• External microphone
• Backup camera is not included — add one below

One kit covers the models in the description. The bracket and harness differ by model, so enter your VIN on this page before you add it to the cart: the VIN goes with your order and we match the kit to your car before it ships.

Ask before you buy

1. 1
   Check your system. The description lists the head unit and the models this screen fits.
2. 2
   Enter your VIN. Use the VIN box on this page before you add the kit to the cart. It goes with your order, and we match the bracket and harness to your car.
3. 3
   Order. The kit ships from the manufacturer in about 7–14 days. US shipping is free.
4. 4
   Install it. The factory screen comes out and the new display mounts in its place; the install notes in the description list each step. Any car audio shop can fit it.
