BMW Touchscreen with Wireless CarPlay — NBT EVO iDrive (2016–2022)

10.25-INCH OR 12.3-INCH TOUCHSCREEN WITH WIRELESS APPLE CARPLAY AND ANDROID AUTO FOR BMW WITH NBT EVO IDRIVE (IDRIVE 5 / IDRIVE 6). REPLACES THE FACTORY SCREEN.

FITMENT — LEFT-HAND DRIVE CARS WITH THE FACTORY NBT EVO IDRIVE SYSTEM

One listing for all the models below. Each model uses its own bracket and harness, so we match the kit to your car by VIN. Choose the 10.25" or 12.3" screen above.

• BMW 2 Series F23 Convertible (2018-2021)
• BMW 5 Series G30 (2018 and later, iDrive 6 / NBT EVO cars only)
• BMW X1 F48 (2018-2022)
• BMW X3 F25 (2016-2017) and X4 F26 (2016-2018)
• BMW X5 F15 (2017-2018) and X6 F16 (2017-2019)

FEATURES

• Touchscreen display in your choice of size: 10.25" or 12.3", Linux system
• Apple CarPlay — wireless or wired connection
• Android Auto — wireless or wired connection
• AirPlay and Android Cast — wireless or wired connection
• Bluetooth phone calls and Bluetooth music
• Option to keep using the factory car Bluetooth
• USB music and video player
• Factory car menu shown on the new screen
• Split-screen or full-screen display of the factory system
• Rear camera input (RCA)
• Front camera view, opened from the home screen
• Screen brightness, contrast, saturation and backlight settings
• Separate volume levels for media, calls, voice and navigation; microphone gain; EQ
• Wi-Fi used only to connect the phone — no internet access
• Software updates over USB

INSTALLATION NOTES

• The factory screen comes out; the new display mounts in its place with the supplied bracket
• The factory screen cable connects to the supplied video box
• The supplied power harness goes between the NBT EVO head unit and its connector; the factory head unit stays in the car
• Sound from the new screen plays through the car's speakers via the supplied USB-AUX audio adapter box
• After install, set the factory screen resolution in the settings menu to match your original screen size (6.5" or 8.8" / 10.25")
• The harness has an RCA camera input; a camera is not included

CHECK YOUR SYSTEM BEFORE ORDERING

• Your car must have the NBT EVO system (iDrive 5 or iDrive 6). Earlier NBT cars, CIC cars and cars with iDrive 7 (Live Cockpit) need a different kit
• NBT EVO replaced NBT from mid-2016 production. On X3 F25 / X4 F26 (2016) and X5 F15 (2017) both systems were fitted in the same model year — your VIN tells us which one your car has
• If your car came with factory Apple CarPlay, it has NBT EVO — earlier NBT cars never offered it
• 2 Series: this kit is listed for the F23 Convertible. For the F22 Coupe, enter your VIN and email us before ordering
• 3 Series F30 and 4 Series F32 / F33 / F36 with NBT EVO are not covered by this kit
• This kit is for left-hand drive cars
• Each BMW model uses its own bracket and harness — enter your VIN on this page so we send the right one

This item ships directly from the manufacturer in about 7–14 days. The bracket and harness differ by model, so enter your VIN in the box on this page before you add the kit to the cart — it goes with your order, and we match the kit to your car before it ships. Questions before you buy? Email [email protected]

• Touchscreen display — 10.25" or 12.3", the size you choose

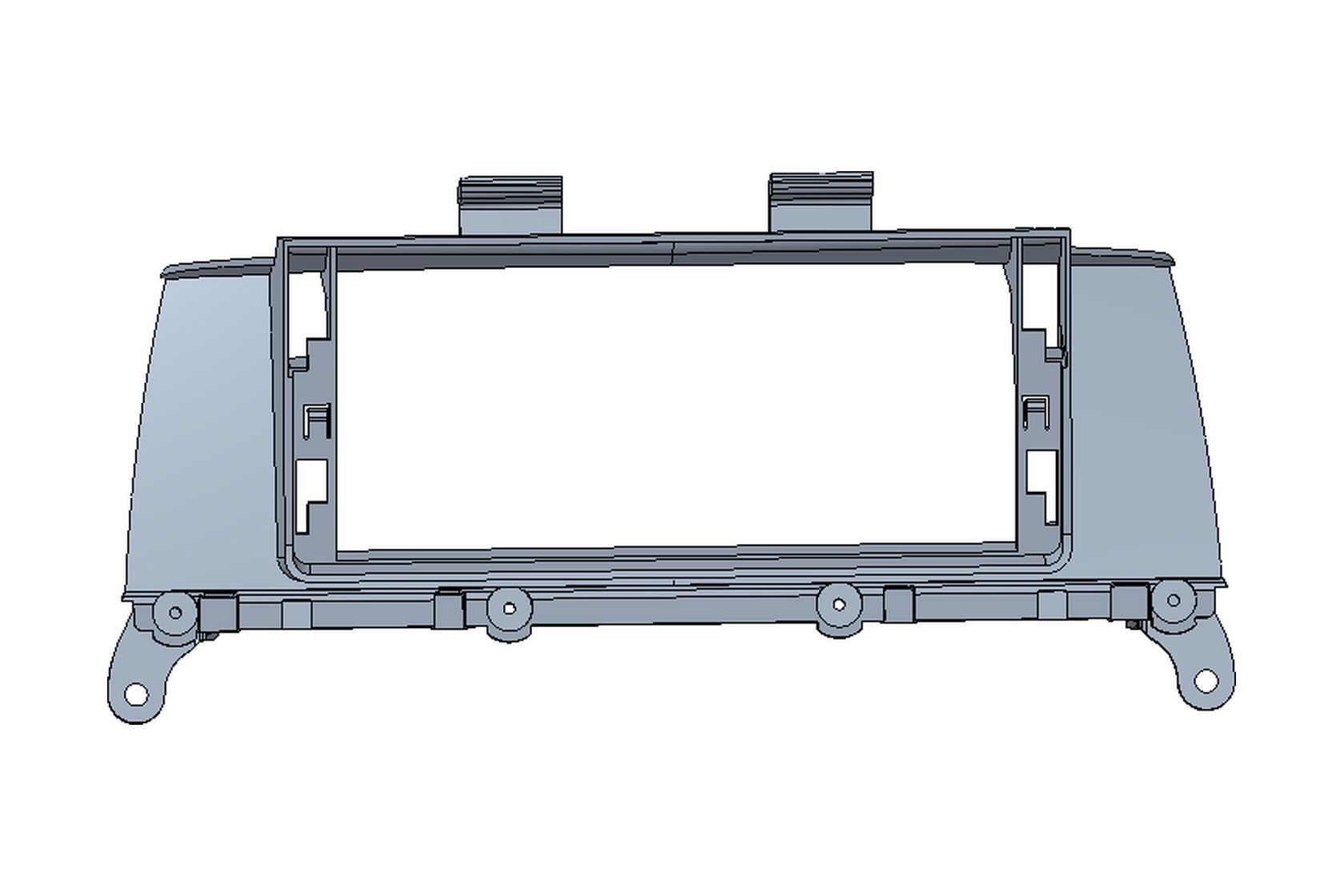

• Mounting bracket for your model
• Video box that connects to the factory screen cable
• Power harness for the NBT EVO head unit
• USB-AUX audio adapter box with 3.5 mm AUX audio cable
• 2 x USB cables (phone, USB drive and software updates)
• RCA camera input cable
• External microphone
• Backup camera is not included — add one below

One kit covers the models in the description. The bracket and harness differ by model, so enter your VIN on this page before you add it to the cart: the VIN goes with your order and we match the kit to your car before it ships.

Ask before you buy

1. 1
   Check your system. The description lists the head unit and the models this screen fits.
2. 2
   Enter your VIN. Use the VIN box on this page before you add the kit to the cart. It goes with your order, and we match the bracket and harness to your car.
3. 3
   Order. The kit ships from the manufacturer in about 7–14 days. US shipping is free.
4. 4
   Install it. The factory screen comes out and the new display mounts in its place; the install notes in the description list each step. Any car audio shop can fit it.
